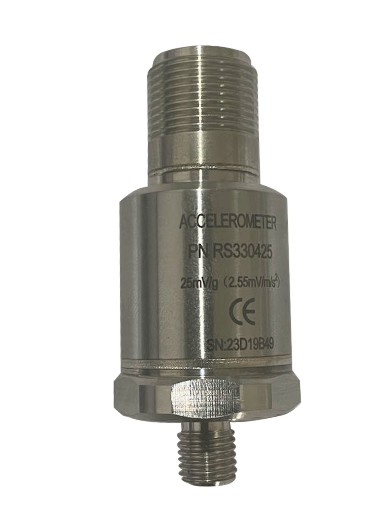

RS330425 acceleration sensor

Your location：> Home> Products> Acceleration> RS330425 acceleration sensor

Replacement Bently330425 acceleration sensor

■ Replacement of Bently330425 acceleration sensor;

■ Explosion-proof mark: Ex ia IIC T4 Ga

■ Sensitivity: 2.5mV /m/s2(25mV/g) (±5%, at 100 Hz);

■ Acceleration range: The overall acceleration is 490m/s2(50g) peak in the frequency band from 1Hz to 20kHz;

■ Amplitude linearity: ±1% at 735m/s2(75g) peak;

■ Frequency response: -3dB(3Hz to 15kHz); -0.8dB(5Hz to 15kHz),

■ Working current: 2 ~ 10mA

■ Working direction: 360° arbitrary Angle

■ Shell material: 304L stainless steel;

■ Power supply voltage: -24±5%VDC;

■ Output resistance: < 100O;

■ Bias voltage: -8.5±5%VDC;

■ Mounting thread: M8×1 integral stud; 1/4-28 UNF monolithic stud;

■ Temperature: -55 ℃ ~ +121℃.
